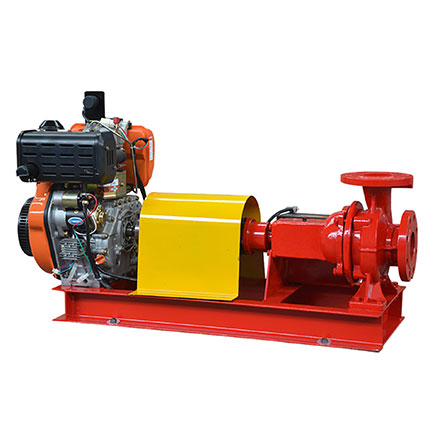

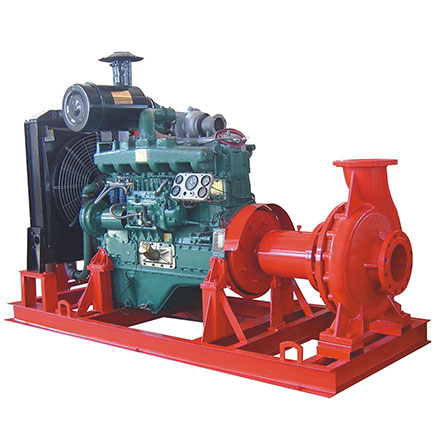

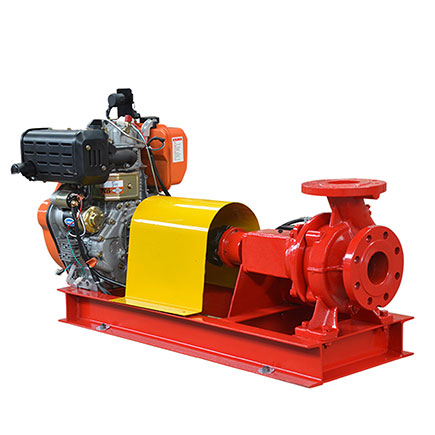

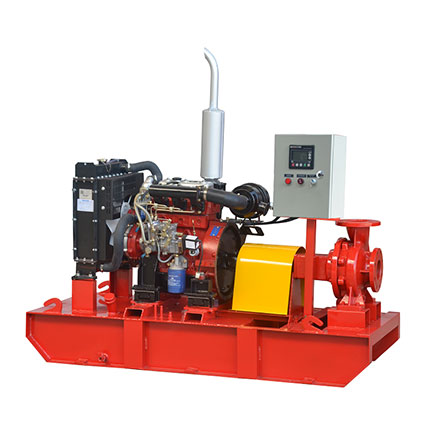

Better( China)Technology Co, LTD. manufactured diesel driven fire pump manufactured according to GB6245-2006 fire pump design. Meets the latest certification CCCF requirements and obtain the certificate. The products' advantage is that when there's fire, power failure and the electric fire pump can't work properly, diesel fire pump automatically put into operation to ensure fire fighting normally; Second, compared with the advantages of electric fire pump, diesel engine pump doesn't need long-term investment in power supply, saving electricity supply transformer and normal expenses. Diesel Fire Pump configure various automatic functions to meet the requirements of national standards to ensure the long-term normal standby equipment, ready to work at any time.

The fire fighting pump systems also apply to other emergent and standby occasions.

No.	Model					Pump model	Flow	Pressure	Inlet	Outlet	Speed	Power
No.	Model					Pump model	L/s	MPa	mm	mm	r/min	kw
1	XBC	3	5	-	IS	65-160	5	0.3	65	65	3000	5.5
2	XBC	4	5	-	IS	65-200A	5	0.4	65	65	3000	8.8
3	XBC	5	5	-	IS	65-200	5	0.5	65	65	3000	8.8
4	XBC	6	5	-	IS	65-250B	5	0.6	65	65	3000	8.8
5	XBC	7	5	-	IS	65-250A	5	0.7	65	65	3000	20
6	XBC	8	5	-	IS	65-250	5	0.8	65	65	3000	20
7	XBC	9	5	-	IS	65-315C	5	0.9	65	65	3000	20
8	XBC	10	5	-	IS	65-315B	5	1	65	65	3000	20
9	XBC	11	5	-	IS	65-315A	5	1.1	65	65	3000	23
10	XBC	12	5	-	IS	65-315	5	1.2	65	65	3000	29
11	XBC	3	10	-	IS	80-160	10	0.3	80	80	3000	6.5
12	XBC	4	10	-	IS	80-200A	10	0.4	80	80	3000	20
13	XBC	5	10	-	IS	80-200	10	0.5	80	80	3000	20
14	XBC	6	10	-	IS	80-250B	10	0.6	80	80	3000	20
15	XBC	7	10	-	IS	80-250A	10	0.7	80	80	3000	20
16	XBC	8	10	-	IS	80-250	10	0.8	80	80	3000	23
17	XBC	9	10	-	IS	80-315C	10	0.9	80	80	3000	23
18	XBC	10	10	-	IS	80-315B	10	1	80	80	3000	29
19	XBC	11	10	-	IS	80-315A	10	1.1	80	80	3000	29
20	XBC	12	10	-	IS	80-315	10	1.2	80	80	3000	46
21	XBC	13	10	-	IS	80-350B	10	1.3	80	80	3000	46
22	XBC	14	10	-	IS	80-350A	10	1.4	80	80	3000	50
23	XBC	15	10	-	IS	80-350	10	1.5	80	80	3000	63
24	XBC	3	15	-	IS	80-160	15	0.3	80	80	3000	8.8
25	XBC	4	15	-	IS	80-200A	15	0.4	80	80	3000	20
26	XBC	5	15	-	IS	80-200	15	0.5	80	80	3000	20
27	XBC	6	15	-	IS	80-250B	15	0.6	80	80	3000	20
28	XBC	7	15	-	IS	80-250A	15	0.7	80	80	3000	20
29	XBC	8	15	-	IS	80-250	15	0.8	80	80	3000	23
30	XBC	9	15	-	IS	80-315C	15	0.9	80	80	3000	23
31	XBC	10	15	-	IS	80-315B	15	1	80	80	3000	35
32	XBC	11	15	-	IS	80-315A	15	1.1	80	80	3000	46
33	XBC	12	15	-	IS	80-315	15	1.2	80	80	3000	46
34	XBC	13	15	-	IS	80-350B	15	1.3	80	80	3000	46
35	XBC	14	15	-	IS	80-350A	15	1.4	80	80	3000	50
36	XBC	15	15	-	IS	80-350	15	1.5	80	80	3000	63
37	XBC	3	20	-	IS	100-160	20	0.3	100	100	3000	20
38	XBC	4	20	-	IS	100-200A	20	0.4	100	100	3000	20
39	XBC	5	20	-	IS	100-200	20	0.5	100	100	3000	23
40	XBC	6	20	-	IS	100-250B	20	0.6	100	100	3000	29
41	XBC	7	20	-	IS	100-250A	20	0.7	100	100	3000	35
42	XBC	8	20	-	IS	100-250	20	0.8	100	100	3000	46
43	XBC	9	20	-	IS	100-315C	20	0.9	100	100	3000	46
44	XBC	10	20	-	IS	100-315B	20	1	100	100	3000	50
45	XBC	11	20	-	IS	100-315A	20	1.1	100	100	3000	63
46	XBC	12	20	-	IS	100-315	20	1.2	100	100	3000	81
47	XBC	13	20	-	IS	100-350B	20	1.3	100	100	3000	81
48	XBC	14	20	-	IS	100-350A	20	1.4	100	100	3000	81
49	XBC	15	20	-	IS	100-350	20	1.5	100	100	3000	110
50	XBC	3	25	-	IS	100-160	25	0.3	100	100	3000	20
51	XBC	4	25	-	IS	100-200A	25	0.4	100	100	3000	20
52	XBC	5	25	-	IS	100-200	25	0.5	100	100	3000	23
53	XBC	6	25	-	IS	100-250B	25	0.6	100	100	3000	29
54	XBC	7	25	-	IS	100-250A	25	0.7	100	100	3000	35
55	XBC	8	25	-	IS	100-250	25	0.8	100	100	3000	46
56	XBC	9	25	-	IS	100-315C	25	0.9	100	100	3000	46
57	XBC	10	25	-	IS	100-315B	25	1	100	100	3000	50
58	XBC	11	25	-	IS	100-315A	25	1.1	100	100	3000	63
59	XBC	12	25	-	IS	100-315	25	1.2	100	100	3000	81
60	XBC	13	25	-	IS	100-350B	25	1.3	100	100	3000	81
61	XBC	14	25	-	IS	100-350A	25	1.4	100	100	3000	81
62	XBC	15	25	-	IS	100-350	25	1.5	100	100	3000	110
63	XBC	3	30	-	IS	100-160	30	0.3	100	100	3000	20
64	XBC	4	30	-	IS	100-200A	30	0.4	100	100	3000	20
65	XBC	5	30	-	IS	100-200	30	0.5	100	100	3000	23
66	XBC	6	30	-	IS	100-250B	30	0.6	100	100	3000	29
67	XBC	7	30	-	IS	100-250A	30	0.7	100	100	3000	35
68	XBC	8	30	-	IS	100-250	30	0.8	100	100	3000	46
69	XBC	9	30	-	IS	100-315C	30	0.9	100	100	3000	46
70	XBC	10	30	-	IS	100-315B	30	1	100	100	3000	50
71	XBC	11	30	-	IS	100-315A	30	1.1	100	100	3000	63
72	XBC	12	30	-	IS	100-315	30	1.2	100	100	3000	81
73	XBC	13	30	-	IS	100-350B	30	1.3	100	100	3000	81
74	XBC	14	30	-	IS	100-350A	30	1.4	100	100	3000	81
75	XBC	15	30	-	IS	100-350	30	1.5	100	100	3000	110
76	XBC	3	35	-	IS	125-160	35	0.3	125	125	3000	23
77	XBC	4	35	-	IS	125-200A	35	0.4	125	125	3000	35
78	XBC	5	35	-	IS	125-200	35	0.5	125	125	3000	46
79	XBC	6	35	-	IS	125-250B	35	0.6	125	125	3000	46
80	XBC	7	35	-	IS	125-250A	35	0.7	125	125	3000	50
81	XBC	8	35	-	IS	125-250	35	0.8	125	125	3000	63
82	XBC	9	35	-	IS	125-315C	35	0.9	125	125	3000	63
83	XBC	10	35	-	IS	125-315B	35	1	125	125	3000	81
84	XBC	11	35	-	IS	125-315A	35	1.1	125	125	3000	81
85	XBC	12	35	-	IS	125-315	35	1.2	125	125	3000	110
86	XBC	3	40	-	IS	125-160	40	0.3	125	125	3000	23
87	XBC	4	40	-	IS	125-200A	40	0.4	125	125	3000	35
88	XBC	5	40	-	IS	125-200	40	0.5	125	125	3000	46
89	XBC	6	40	-	IS	125-250B	40	0.6	125	125	3000	46
90	XBC	7	40	-	IS	125-250A	40	0.7	125	125	3000	50
91	XBC	8	40	-	IS	125-250	40	0.8	125	125	3000	63
92	XBC	9	40	-	IS	125-315C	40	0.9	125	125	3000	63
93	XBC	10	40	-	IS	125-315B	40	1	125	125	3000	81
94	XBC	11	40	-	IS	125-315A	40	1.1	125	125	3000	81
95	XBC	12	40	-	IS	125-315	40	1.2	125	125	3000	110
96	XBC	3	45	-	IS	125-160	45	0.3	125	125	3000	23
97	XBC	4	45	-	IS	125-200A	45	0.4	125	125	3000	35
98	XBC	5	45	-	IS	125-200	45	0.5	125	125	3000	46
99	XBC	6	45	-	IS	125-250B	45	0.6	125	125	3000	46
100	XBC	7	45	-	IS	125-250A	45	0.7	125	125	3000	50
101	XBC	8	45	-	IS	125-250	45	0.8	125	125	3000	63
102	XBC	9	45	-	IS	125-315C	40	0.9	125	125	3000	63
103	XBC	10	45	-	IS	125-315B	40	1	125	125	3000	81
104	XBC	11	45	-	IS	125-315A	40	1.1	125	125	3000	81
105	XBC	12	45	-	IS	125-315	40	1.2	125	125	3000	110
106	XBC	3	50	-	IS	150-160	50	0.3	150	150	3000	31
107	XBC	4	50	-	IS	150-200A	50	0.4	150	150	3000	35
108	XBC	5	50	-	IS	150-200	50	0.5	150	150	3000	46
109	XBC	6	50	-	IS	150-250B	50	0.6	150	150	3000	46
110	XBC	7	50	-	IS	150-250A	50	0.7	150	150	3000	63
111	XBC	8	50	-	IS	150-250	50	0.8	150	150	3000	81
112	XBC	9	50	-	IS	150-315C	50	0.9	150	150	3000	81
113	XBC	10	50	-	IS	150-315B	50	1	150	150	3000	81
114	XBC	11	50	-	IS	150-315A	50	1.1	150	150	3000	110
115	XBC	12	50	-	IS	150-315	50	1.2	150	150	3000	125
116	XBC	13	50	-	IS	150-350B	50	1.3	150	150	3000	125
117	XBC	14	50	-	IS	150-350A	50	1.4	150	150	3000	125
118	XBC	15	50	-	IS	150-350	50	1.5	150	150	3000	125
119	XBC	3	55	-	IS	150-160	55	0.3	150	150	3000	31
120	XBC	4	55	-	IS	150-200A	55	0.4	150	150	3000	35
121	XBC	5	55	-	IS	150-200	55	0.5	150	150	3000	46
122	XBC	6	55	-	IS	150-250B	55	0.6	150	150	3000	46
123	XBC	7	55	-	IS	150-250A	55	0.7	150	150	3000	63
124	XBC	8	55	-	IS	150-250	55	0.8	150	150	3000	81
125	XBC	9	55	-	IS	150-315C	55	0.9	150	150	3000	81
126	XBC	10	55	-	IS	150-315B	55	1	150	150	3000	81
127	XBC	11	55	-	IS	150-315A	55	1.1	150	150	3000	125
128	XBC	12	55	-	IS	150-315	55	1.2	150	150	3000	125
129	XBC	13	55	-	IS	150-350B	55	1.3	150	150	3000	81
130	XBC	14	55	-	IS	150-350A	55	1.4	150	150	3000	125
131	XBC	15	55	-	IS	150-350	55	1.5	150	150	3000	125
132	XBC	3	60	-	IS	150-160	60	0.3	150	150	3000	31
133	XBC	4	60	-	IS	150-200	60	0.4	150	150	3000	35
134	XBC	5	60	-	IS	150-200	60	0.5	150	150	3000	46
135	XBC	6	60	-	IS	150-250A	60	0.6	150	150	3000	46
136	XBC	7	60	-	IS	150-250	60	0.7	150	150	3000	63
137	XBC	8	60	-	IS	150-315B	60	0.8	150	150	3000	81
138	XBC	9	60	-	IS	150-315C	60	0.9	150	150	3000	81
139	XBC	10	60	-	IS	150-315B	60	1	150	150	3000	81
140	XBC	11	60	-	IS	150-315A	60	1.1	150	150	3000	125
141	XBC	12	60	-	IS	150-315	60	1.2	150	150	3000	125
142	XBC	13	60	-	IS	150-350B	60	1.3	150	150	3000	81
143	XBC	14	60	-	IS	150-350A	60	1.4	150	150	3000	125
144	XBC	15	60	-	IS	150-350	60	1.5	150	150	3000	125
145	XBC	3	55	-	IS	200-315	55	0.3	200	200	1500	32
146	XBC	4	55	-	IS	200-400A	55	0.4	200	200	1500	41
147	XBC	5	55	-	IS	200-400	55	0.5	200	200	1500	56
148	XBC	6	55	-	IS	200-500C	55	0.6	200	200	1500	60
149	XBC	7	55	-	IS	200-500B	55	0.7	200	200	1500	84
150	XBC	8	55	-	IS	200-500	55	0.8	200	200	1500	110
151	XBC	3	60	-	IS	200-315	60	0.3	200	200	1500	32
152	XBC	4	60	-	IS	200-400A	60	0.4	200	200	1500	41

Hotels, hospitals, gymnasium and other public places;

Chemical, oil refining, metallurgy, energy, medicine and military and other enterprises;
Shopping malls, similar to Wanda complex;
Office buildings, high-end residential buildings;

Environmental and Working Conditions
Ambient temperature:
Ambient temperature range 4℃-40℃.
Working to improve the ambient temperature every 5℃, its power decreased by 1%(to 25℃ as the base);
Altitude:
Reference elevation 91.4m, the reference atmospheric pressure is 100KPa;
If the work to an altitude of over 1000m, reference should be corrected GB1105 1-1987 diesel engine power, you can consult the specific technical department;
Relative humidity ≤80% (20℃), outdoor allow 90% (when installed outdoors in the order presented, you can choose to configure the outdoor structure, protection class IP55).

The Scope of Work
Water pressure: 0. 2-2.5MPa (20~250 meters);
Flow range: 5-1200L/S
Power: 3kW~2000kW;
Speed range: 1500~3200r/min
Permissible media: Drinking water, chilled water, fire water, and other impurities without abrasive or long-fiber impurities and no chemical or mechanical pump for corrosive media.
Allow the maximum medium temperature 70℃, the maximum ambient temperature of 40℃;
Maximum allowable working pressure of 1.6MPa, the maximum inlet pressure 0.6MPa.

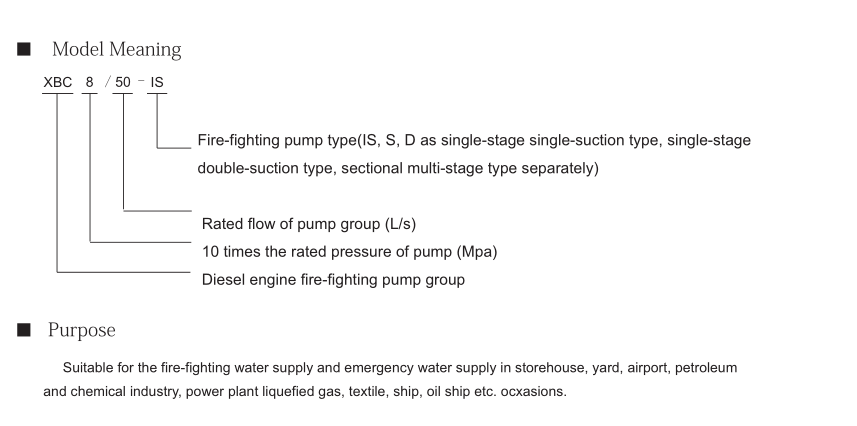

Model meaning
